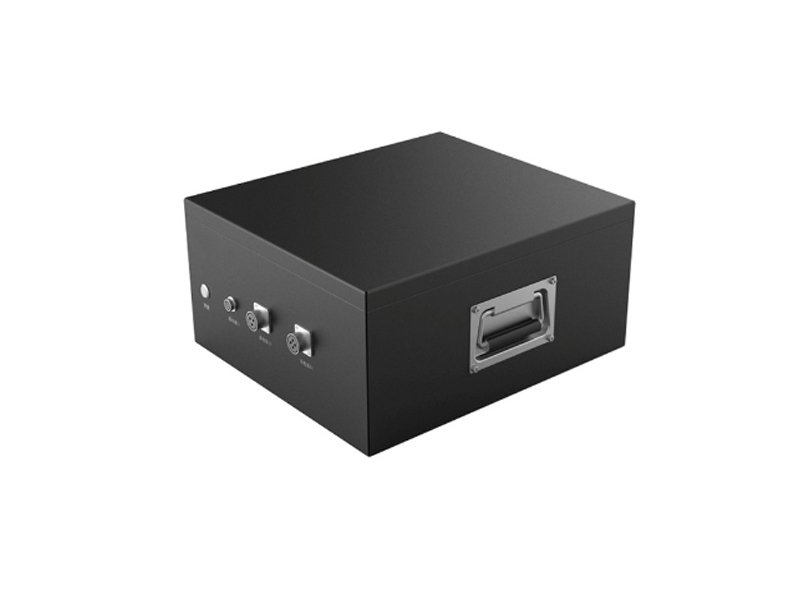

48V 60Ah AGV LiFePO4 Battery for Electric Vehicles
| Herkunftsort | CHINA |
|---|---|
| Markenname | JHOTA |
| Min Bestellmenge | 5 |
| Preis | Verhandelbar |
| Verpackung Informationen | Karton |
| Lieferzeit | 20-30 Tage |
| Zahlungsbedingungen | T/t |
| Versorgungsmaterial-Fähigkeit | 500pcs |
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Produktname | AGV -Fahrzeugbatterie | Nennspannung | 48 V |
|---|---|---|---|
| Nennkapazität | 60ah | Zyklusleben | 2000 Mal |
| Garantie | 5 Jahre | ||
| Hervorheben | 48V 60Ah AGV LiFePO4 battery,electric vehicle lithium battery with warranty,LiFePO4 battery for AGV vehicles |
||
Produkt-Beschreibung
Specification
| Item | Parameter |
|---|---|
| Nominal Voltage | 48V |
| Rated Capacity | Nominal Capacity: 60Ah, Minimum Capacity: 58Ah |
| Charging Voltage | 54.8V |
| Charging Method | Constant Current / Constant Voltage |
| Discharge Cut-off Voltage | 34.5V |
| Rated Charging Current | ≤30A |
| Maximum Continuous Charging Current | ≤60A |
| Internal Resistance | <100mΩ |
| Rated Discharge Current | ≤30A |
| Maximum Continuous Discharge Current | ≤60A (not exceeding 1 hour) |
| Overcharge Protection Voltage | 3.65±0.05V (adjustable) |
| Over-discharge Protection Voltage | 2.3±0.01V (adjustable) |
| Overcurrent Protection | Discharge overcurrent value: ≥180A |
| Short Circuit Protection |
Condition: External circuit short, Recovery: Disconnect short circuit |
| Operating Temperature Range | Charge: 0~55°C, Discharge: -20~55°C |
| Storage Temperature Range | Less than 7 days: 20~65°C |
| Weight | Approx. 25kg |
| Dimensions | Customizable |
Product Description:
48V 60Ah AGV LiFePO4 Battery for Electric Vehicles
Advantages:
1. Extended Operational Runtime and High Energy Density;
2. Superior Power Delivery for Demanding Tasks;
3. Enhanced Safety and Robust Battery Protection;
4. Wide Operating Temperature Range for Reliability
1. Extended Operational Runtime and High Energy Density;
2. Superior Power Delivery for Demanding Tasks;
3. Enhanced Safety and Robust Battery Protection;
4. Wide Operating Temperature Range for Reliability
Application:
1.Goods-to-Person Systems: Powers AGVs that transport entire shelves of inventory to picking stations, requiring sustained high energy
for continuous movement and lifting.
2.Pallet Transport: Provides the necessary current surge for heavy-duty forklift AGVs to lift and move palletized goods (500kg - 1000kg+).
3. Sortation and Distribution: Fuels AGVs in parcel sorting hubs, enabling rapid acceleration, constant travel, and high throughput with
minimal charging downtime.
